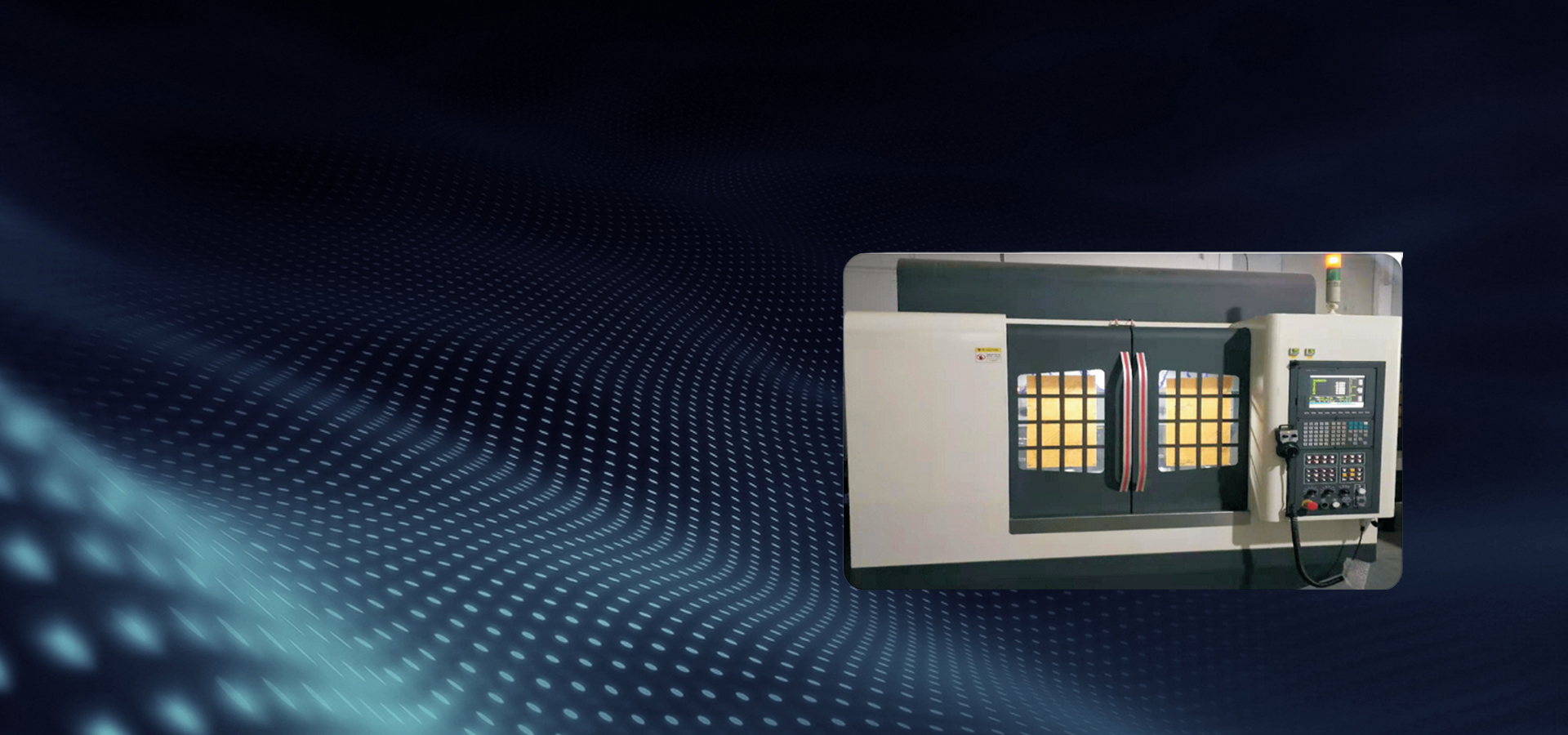

GS-600SJ
Plastic grinding and polishing equipment
Model features
1 . The equipment uses a four sided electric spindle, with two sides being eccentric
2. The equipment has 5 workstations that can be used for various models of mobile phones, small items, plastic molding lines, polishing and grinding
3. The system can achieve five axis linkage
4. It can rotate at any angle and polish inclined surfaces at different angles;
5. The grinding disc can be switched between 1-3 inches
6. The distance between A-axis (workstation) is 210/240MM
Basic parameters of machine tool
Model content | Parameter |
function | Grinding and polishing |
Quantity of workpieces processed at once | five |
Continuously complete the process | 4 lanes |
A-axis rotation angle | -5°~+365° |
X/Y/Z axis travel (mm) | X:250 Y:400 Z:300 |
X/Y/Z axis repeat positioning accuracy (mm) | ±0.02 |
C-axis swing angle | 360 degree continuous (-5~-+365 °) |
voltage | AC 380V |
total power | 13KW |
air pressure | ≥0.5Mpa |
water | recycle |
Dimensions (length * width * height mm) | 1980X1780X2250 |
Applicable to products | plastic |
Processing product dimensions | 55MM-240MM |
XYZ feed rate | 100-500mm per second |
control system | New generation system |
Motor model | 1.7KW/RT28 1.7KW/RT29 |
Japan Kamo Roller | CPA1610B-2B |
Japan Kamo Gear | CRA1610A-2BF-L992 |
Spindle grinding head speed | 300-6000 |
Equipment weight | 2800KG |
