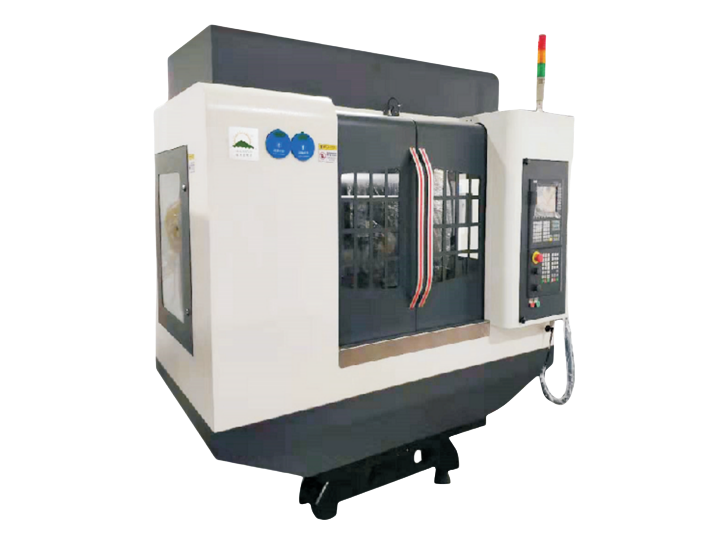

GS-600DP
Lapping polishing equipment
Model features
1. It can achieve simultaneous polishing of five workstations with high efficiency;
2. Each axis can achieve self rotation, saving tooling;
3. The A-axis rotation accuracy can reach 0.02mm, with high precision;
4. The product's rotation speed and polishing speed are controlled stably.
5. Equipped with a cloth wheel repair device, the cloth wheel can be repaired after wear and tear.
Function Features
1. The double-sided polishing head can be equipped with different styles of cloth wheels, which can achieve various appearance requirements;
2. Multiple products are polished simultaneously, resulting in high efficiency;
3. It can rotate at any angle and polish inclined surfaces at different angles;
4. The system is equipped with a progressive compensation function, which automatically compensates for the diameter of the cloth wheel after wear.
5. The distance between A-axis (workstations) is 210m
Basic parameters of machine tool
Model content | Parameter |
Function | Stacked throwing |
Quantity of workpieces processed at once | 5-50 |
Continuously complete the process | 2 lanes |
A-axis rotation angle | -5°~+365° |
X/Y/Z axis travel (mm) | X:250 Y:400 Z:300 |
X/Y/Z axis repeat positioning accuracy (mm) | ±0.02 |
C-axis swing angle | 360 degree continuous (-5 °~+365 °) |
Voltage | AC 380V |
Total power | 9KW |
Air pressure | ≥0.5Mpa |
Water | recycle |
Dimensions (length * width * height mm) | 1950X1780X2250 |
Applicable to products | Aluminum alloy frame |
Processing product dimensions | 55MM-210MM |
XYZ feed rate | 100-500mm per second |
Control system | Siemens/New Generation |
Japan Kamo Roller | CPA1610B-2B |
Japan Kamo Gear | CRA1610A-2BF-L992 |
Grinding head speed | 0-2000 |
Maximum diameter of cloth wheel | 8 inches |
Equipment weight | 2800KG |
